FEV 3.5 Litre F-TEC Foam Mechanical Plumbed-In Fire Extinguisher Kit

FEV 3.5 Litre F-TEC Foam Mechanical Plumbed-In Fire Extinguisher Kit

£291.26

(Exc. 20% VAT)

(£349.51 Inc. VAT)

–

Part Number

F-TEC3500MK

Operation

Mechanical

Extinguishant

AFFF

3.5 litre capacity fire extinguisher

FIA and MSA approved motorsport use

Mounting bracket with retention straps

FEV F-TEC AFFF foam fire extinguishant

Description

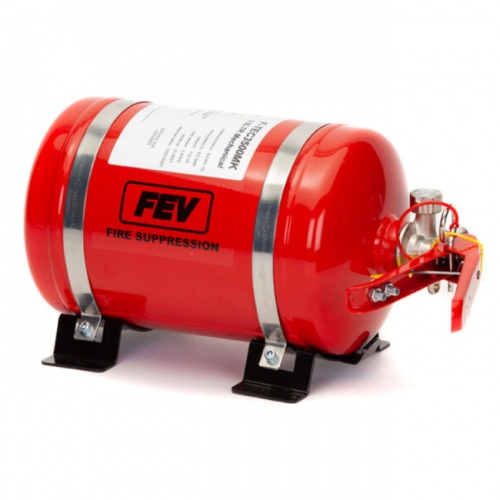

FEV 3.5 litre, 6 nozzle, manually operated plumbed in, AFFF fire extinguisher system, supplied as a complete kit with all necessary components for a professional fire suppression system. Technical list 16 FIA/MSUK approved, this 3.5 litre F-TEC foam fire suppression system, features a steel cylinder and mechanical T pull cable operation.

F-TEC foam is freeze protected to -15 degrees and has excellent properties to eliminate re-ignition. This system is supplied with 6 of FEV's newly developed atomising foam nozzles, producing a fine mist resulting in a much larger surface area coverage, with 4 discharging in the engine bay and 2 into the cockpit area giving full 360° protection.

All FEV kits include installation instructions.

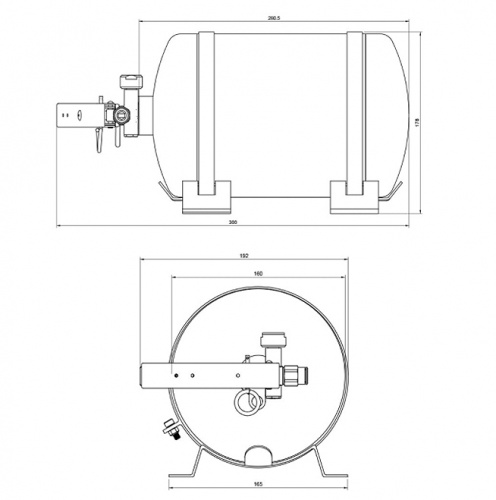

Overall dimensions: 366mm length, 178mm height, 192mm width, 160mm bottle diameter, 8.180kg total weight.

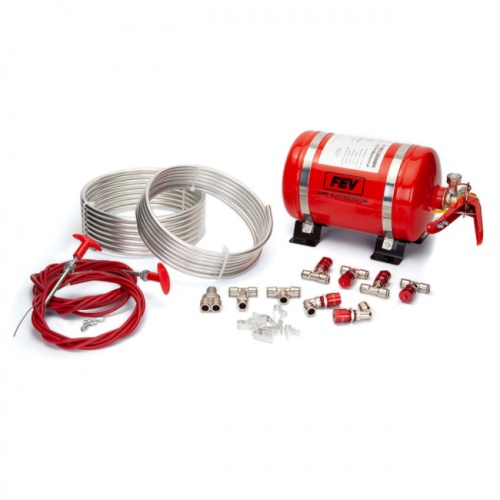

Installation kit contents:

1 x bracket and ‘T’ bolt straps

1 x pull cable 12ft

1 x Pull cable 6ft

1 x Pair of cable nipples

4.7 mtr x 10mm aluminium tubing

4.3 mtr x 8mm aluminium tubing

2 x cockpit nozzle with 10mm x ¼ metal straight connector

4 x engine nozzle with 8mm x ¼ metal swivel 'T' connector

1 x metal 'T' connector 10-10
