Safety Devices Proton Satria Multipoint Bolt In Roll Cage
Safety Devices Proton Satria Multipoint Bolt In Roll Cage
Safety Devices Proton Satria Multipoint Bolt In Roll Cage

Safety Devices Proton Satria Multipoint Bolt In Roll Cage

  • FIA and MSA Approved Roll Cage
  • Multipoint Bolt-in Cage with Door Bars
  • Made from CDS Steel Tube with Brackets
    • £853.00
    (Exc. 20% VAT)
    (£1,023.60 Inc. VAT)
    Option 1
    Option 2
    Option 3
    Option 4
    Option 5
    Option 6
    Option 7
    Option 8
    –
    +
    Part Number
    Q053-1
  • FIA and MSA Approved Roll Cage
  • Multipoint Bolt-in Cage with Door Bars
  • Made from CDS Steel Tube with Brackets
  • Supplied with Reinforcements & Fasteners

    • Safety Devices
    Description

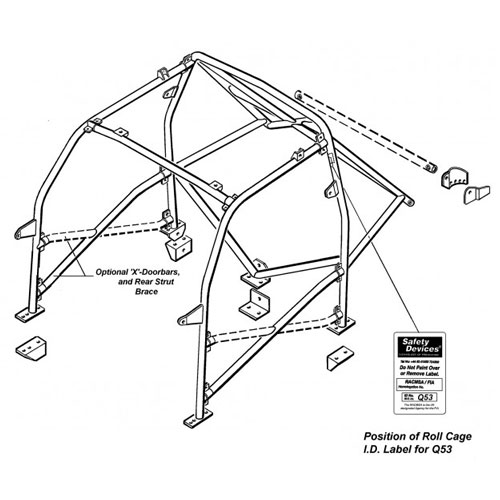

    Safety Devices multi-point bolt-in roll cage, for the Proton Satria 3 door hatchback, Compact and GTi. The Safety Devices 'Q053' cage fits 3 door hatch models from 1994 to 2006. The front cage penetrates the dashbord, so modifications are required. The front cage mounts to the floor and rear cage mounts to the floor and rear wheel arches. The cage includes a pair of unique door bars, cage reinforcement plates and fasteners as required. Cages are supplied as standard with a satin black, powder coated finish. Image for illustration purposes - actual cage layout displayed. MSA/FIA Homologated

    Please Note: All roll cages can be ordered in bare metal at no extra charge or in various colours with an additional cost and due to their size most roll cages are shipped on a pallet. If you wish to order a non-standard roll cage or require shipping outside the UK mainland, please CONTACT US to discuss all your requirements.

    There are three different rear cage section models available for the Proton Satria 3 door models.

    Please review the details below and choose the cage option that best meets your requirements.

    Roll Cage Options:

    • Option 1 - Front Cage + Rear Cage + Single Diagonal + Single Door Bars
    • Option 2 - Front Cage + Rear Cage + Single Diagonal + Single Door Bars + Reat Strut Brace
    • Option 3 - Front Cage + Rear Cage + Single Diagonal + Harness Bar + Single Door Bars
    • Option 4 - Front Cage + Rear Cage + Single Diagonal + Harness Bar + Single Door Bars + Reat Strut Brace
    • Option 5 - Front Cage + Rear Cage + Cross Diagonal + Harness Bars + Lower Backstays + Tunnel Brace + Door Bars
    • Option 6 - Front Cage + Rear Cage + Cross Diagonal + Harness Bars + Lower Backstays + Tunnel Brace + Door Bars + Rear Strut Brace
    • Option 7 - Front Cage + Rear Cage + Cross Diagonal + Harness Bars + Lower Backstays + Tunnel Brace + Cross Door Bars
    • Option 8 - Front Cage + Rear Cage + Cross Diagonal + Harness Bars + Lower Backstays + Tunnel Brace + Cross Door Bars + Rear Strut Brace

    MSA/FIA Homologated - Certificate No: 1733

    (Independently certified, certificate available from the MSA - Tel: 01753 765000)
