Safety Devices Lotus Elise S2 6 Point Bolt In Roll Cage - Toyota
Safety Devices Lotus Elise S2 6 Point Bolt In Roll Cage - Toyota
Safety Devices Lotus Elise S2 6 Point Bolt In Roll Cage - Toyota
Safety Devices Lotus Elise S2 6 Point Bolt In Roll Cage - Toyota

Safety Devices Lotus Elise S2 6 Point Bolt In Roll Cage - Toyota

  • Cage Includes Front & Rear Sections
  • Door Bars are Selectable as an Option
  • Standard Issue is Black Powder Coated
  • £1,269.00
    (Exc. 20% VAT)
    (£1,522.80 Inc. VAT)
    Right Hand Drive Cars
    Left Hand Drive Cars
    Option 1
    Option 2
    +
    Part Number
    E022-1R
  • Cage Includes Front & Rear Sections
  • Door Bars are Selectable as an Option
  • Standard Issue is Black Powder Coated
  • Cage Kit Includes Installation Parts

  • Safety Devices
    Description

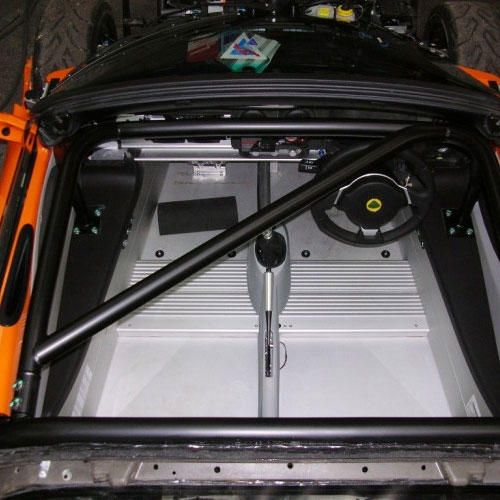

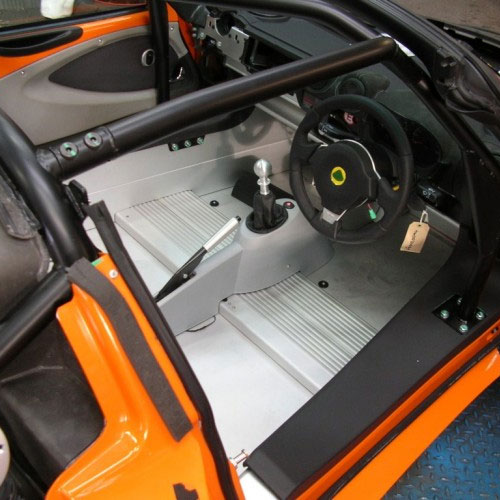

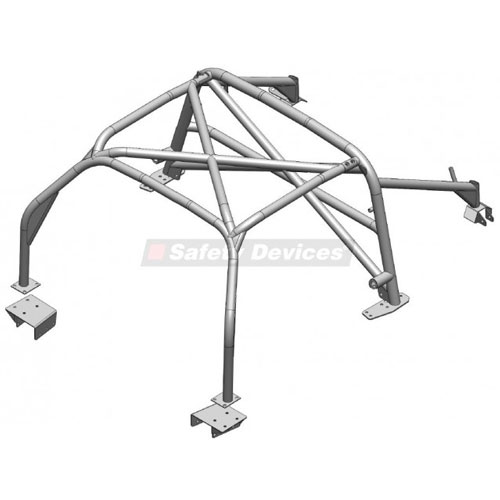

    Safety Devices 6 point bolt in roll cage for the Lotus Elise S2 with a Toyota engine and the Lotus Exige S2. This cage fits all Toyota engine Elise S2 models from 2004 to present and the Lotus Exige S2. The cage includes a front cage, with single or cross roof bars and a rear cage, which replaces the original rear hoop. The rear cage has a cross diagonal, door bar mounts and a dedicated harness bar. The car's existing seat belts can be retained as desired.

    Due to the high side sills on the Elise/Exige, door bars are not required for FIA/MSA homologation, however there is a kit available, just choose the cage option required to include them if desired. Trim and body work modifications are required, be aware that the original rear window needs to be replaced with a Lexan sheet, this is not really a DIY job. Each cage section comes powder coated black and includes fittings.

    Please Note: All roll cages can be ordered in bare metal at no extra charge or in various colours with an additional cost and due to their size most roll cages are shipped on a pallet. If you wish to order a non-standard roll cage or require shipping outside the UK mainland, please CONTACT US to discuss all your requirements.

    Cage Options:

    • Option 1 - Front Cage with Single Roof Bar + Rear Cage with Cross Diagonal + Harness Bar
    • Option 2 - Front Cage with Cross Roof Bar + Rear Cage with Cross Diagonal + Harness Bar

    FIA Homologated - Certificate No: SC-DJ-07-01

    MSA/FIA Homologated - Certificate No: 2243

    (Independently certified, certificate available from the MSA - Tel: 01753 765000)


    Technical Data

    Front Cage - Part. No: RBE021 3SXS
    Front roll cage for universal door bars. Must be used with the rear roll cage. Weight: approx 17.5kg

    Rear Cage - Part No: RBE021 5SXS
    Rear cage, cross diagonal, harness bar.  May be used without the front cage. Weight: approx 20.5kg

    Door Bars - Part No: RB00A3*
    Door bar kit (per pair),  if used, must be used with both the front and rear roll cage. Weight: approx 8.5kg

    *Optional, not required for MSA/FIA Homologation  (special dispensation given due to the Elise sill height)
